• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab Models.)
• Audio system feature, Bose premium speaker system with sub-woofer in center console
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Coat hooks, rear driver and passenger side
• Console, floor with storage compartment, 2 auxiliary power outlets and dual cup holders
• Cruise control, electronic with set and resume speed, located on steering wheel
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Door locks, power includes Remote Keyless Entry
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview auto-dimming
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)
• Steering wheel controls, mounted audio controls
• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, power with driver Express-Down (Includes front passenger Express-down.)

• Alternator, 145 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, front disc/rear drum
• Differential, heavy-duty automatic locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Steering, power, rack-and-pinion
• Suspension Package, Handling/Trailering, heavy-duty includes 46 mm piston monotube shocks and 36mm front stabilizer bar (Includes 36mm front stabilizer bar when (NHT) Max Trailering Pack is ordered.)
• Suspension, front independent, coil over shock
• Suspension, rear 2-stage multi-leaf springs, semi-elliptic
• Transfer case, electronic Autotrac with rotary dial controls (Requires 4WD models.)

• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head curtain side-impact, front outboard seating positions with rollover sensor (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Automatic Crash Response
• Daytime Running Lamps, with automatic exterior lamp control
• Door locks, rear child security (Crew Cab models only.)
• OnStar Turn-by-Turn Navigation
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, First Assist, Injury Severity Predictor, Stolen Vehicle Assistance, Stolen Vehicle Slowdown, Remote Ignition Block, Remote Door Unlock (requires power locks), Roadside Assistance, Remote Horn and Lights, Turn-by-Turn Navigation with OnStar eNav, Destination Download (requires navigation radio), OnStar Vehicle Diagnostics, Hands Free Calling and available OnStar RemoteLink mobile app. (Visit onstar.com for details and system limitations.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Stolen Vehicle Assistance
• Tire Pressure Monitor System (does not apply to spare tire)

Ltz Preferred Equipment Group

• Standard Equipment

Additional Packages

• Gvwr
• 7000 Lbs. (3175 Kg) (Std)
• License Plate Bracket
• Front (Will Be Forced On Orders With Ship-To States That Require A Front License Plate)
• Navtraffic Is Available In Over 130 Markets And Works With Your Vehicle's Navigation System To Give You Detailed Traffic Data Right When You Need It Most - While You're Driving. You'll Avoid Traffic Tie-Ups
• Save Time And Gas By Getting Alternate Routes
• In Some Cases
• Receive Traffic Speed And Drive-Time Information. Plus
• You Can Use Navtraffic At The Same Time You're Enjoying Siriusxm Satellite Radio. You'll Find That Once You Start Using Navtraffic
• You Won't Want To Drive Without It.
• Paint
• Solid
• Pedals
• Power-Adjustable For Accelerator And Brake
• Rear Axle
• 3.42 Ratio
• Rear Parking Assist
• Ultrasonic With Audible Warning
• Rear Vision Camera
• Tailgate
• Ez-Lift
• Tailgate
• Locking
• Trailer Brake Controller
• Integrated
• Transmission
• 6-Speed Automatic
• Electronically Controlled With Overdrive And Tow/Haul Mode. Includes Cruise Grade Braking And Powertrain Grade Braking (Std)
• Universal Home Remote
• White Diamond Tricoat

• TIRES P275/55R20 TOURING BLACKWALL includes all-season 17" blackwall spare
• REAR AXLE 3.42 RATIO
• TRANSMISSION 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• NAVTRAFFIC is available in over 130 markets and works with your vehicle's navigation system to give you detailed traffic data right when you need it most - while you're driving. You'll avoid traffic tie-ups save time and gas by getting alternate routes and in some cases receive traffic speed and drive-time information. Plus you can use NavTraffic at the same time you're enjoying SiriusXM Satellite Radio. You'll find that once you start using NavTraffic you won't want to drive without it.
• LICENSE PLATE BRACKET FRONT (will be forced on orders with ship-to states that require a front license plate)
• UNIVERSAL HOME REMOTE
• SEATS HEATED AND COOLED DRIVER AND FRONT PASSENGER FRONT BUCKET includes 12-way power driver and front passenger seat adjusters including 4-way power lumbar control 2-position driver memory adjustable head restraints floor console and storage pockets
• SEATS FRONT BUCKET includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control heated seat cushions and seatbacks 2-position driver memory adjustable outboard head restraints floor console and storage pockets (STD)
• GVWR 7000 LBS. (3175 KG) (STD)
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR PARKING ASSIST ULTRASONIC with audible warning
• TAILGATE EZ-LIFT
• AUDIO SYSTEM WITH NAVIGATION AM/FM/SIRIUSXM STEREO WITH CD PLAYER 7-inch touch-screen Color Interface Display (CID) 30 gig usable Hard Drive storage space with navigation and voice recognition USB port MP3 playback capability Radio Data System (RDS) speed-compensated volume time shift recording capability Includes (UBS) NavTraffic.)
• LTZ PLUS PACKAGE includes (UG1) Universal Home Remote (A60) locking tailgate (PPA) EZ-Lift tailgate (JF4) power-adjustable pedals (UD7) Rear Parking Assist and (S41) Rear wheelhouse liner LPO
• PEDALS POWER-ADJUSTABLE FOR ACCELERATOR AND BRAKE
• LTZ WHITE DIAMOND EDITION includes (98U) White Diamond Tricoat exterior color (Z60) High-Performance Suspension Package (S80) 4 - 20" x 8.5" (50.8 cm x 21.6 cm) chrome-clad aluminum wheels (QSS) P275/55R20 touring blackwall tires (VPA) Chrome Package LPO plant installed chrome mirror caps and door handles (except tailgate) and bodyside moldings with chrome accent
• LPO REAR WHEELHOUSE LINER

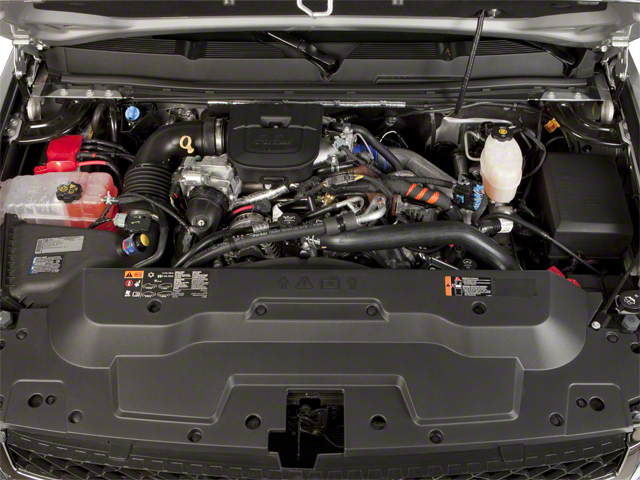

• ENGINE VORTEC 5.3L VARIABLE VALVE TIMING V8 SFI FLEXFUEL WITH ACTIVE FUEL MANAGEMENT capable of running on unleaded or up to 85% ethanol (with gas - 315 hp [234.8 kW] @ 5200 rpm 335 lb-ft of torque [452.2 N-m] @ 4000 rpm) aluminum block (STD)
• PAINT SOLID
• LPO CHROME PACKAGE includes chrome recovery hooks and highly polished exhaust tip
• TAILGATE LOCKING
• REAR VISION CAMERA
• LTZ PREFERRED EQUIPMENT GROUP includes standard equipment
• WHITE DIAMOND TRICOAT
• WHEELS 4 - 20" X 8.5" (50.8 CM X 21.6 CM) CHROME-CLAD ALUMINUM includes (QSS) P275/55R20 touring blackwall tires Includes (Z60) High-Performance Suspension Package.
• SUSPENSION PACKAGE HIGH-PERFORMANCE includes 36mm front stabilizer bar
• EBONY CUSTOM PERFORATED LEATHER-APPOINTED FRONT SEATS
• Tow Hitch
• Locking/Limited Slip Differential
• Four Wheel Drive
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Chrome Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• Auxiliary Audio Input
• Premium Sound System
• Satellite Radio
• Requires Subscription
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Leather Seats
• Power Driver Seat
• Power Passenger Seat
• Rear Bench Seat
• Power Outlet
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Power Windows
• Keyless Entry
• Power Door Locks
• Security System
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Cruise Control
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Front Side Air Bag
• Telematics
• Navigation from Telematics
• Smart Device Integration
• Requires Subscription
• Telematics
• Requires Subscription
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Requires Subscription
• Child Safety Locks
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Drum - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.99 x 1.18
• Rear Drum Diam x Width (in): 11.61 x 2.36
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.00
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 53.20
• Tailgate Width (in): 61.50
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 145
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 32.00
• Front Bumper to Back of Cab (in): 148.90
• Ground Clearance, Front (in): 9.00
• Ground Clearance, Rear (in): 12.10
• Ground to Top of Load Floor (in): 32.70
• Height, Overall (in): 73.70
• Length, Overall w/o rear bumper (in): 230.20
• Overhang, Front (in): 39.40
• Overhang, Rear w/o bumper (in): 47.20
• Wheelbase (in): 143.50
• Width, Max w/o mirrors (in): 80.00
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Driver Side
• Interior Dimensions
• Front Head Room (in): 41.20
• Front Hip Room (in): 62.50
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Passenger Capacity: 5
• Second Head Room (in): 40.50
• Second Hip Room (in): 65.40
• Second Leg Room (in): 38.70
• Second Shoulder Room (in): 65.10
• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Fuel Economy Est-Combined (MPG): 17
• Steering
• Steering Ratio (:1), At Lock: 3
• Steering Ratio (:1), On Center: 16.73
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 47.2
• Summary
• Body Code: E63
• Body Style: Crew Cab 5.8' Wideside
• Vehicle Name: Chevrolet Silverado 1500
• Suspension
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Stabilizer Bar Diameter - Front (in): 1.42
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Tires
• Front Tire Capacity (lbs): 2044
• Front Tire Order Code: QSS
• Front Tire Size: P275/55R20
• Rear Tire Capacity (lbs): 2044
• Rear Tire Order Code: QSS
• Rear Tire Size: P275/55R20
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Maximum Trailering Capacity (lbs): 9500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1425
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9500
• Weight Information
• Curb Weight - Front (lbs): 3158
• Curb Weight - Rear (lbs): 2130
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Gross Combined Wt Rating (lbs): 15000
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Wheels
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 20 x 8.5
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 20 x 8.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x
